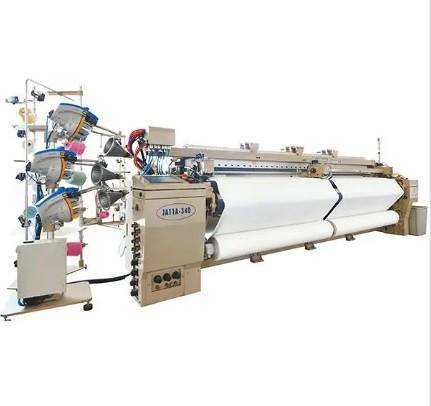

JA92 Air Jet Weaving Machine Textile Machinery For Sale Air-Jet Looms
JA92 series air jet loom is designed through combining advantages of every kind of textile loom at home and abroad and advanced technology. JA92 series air-jet loom boasts born quality genes, which determines its unique and professional quality.
The jumping -off place of JA92 airjet loom is that it can offer clients loom with excellent quality and price. Depending on satisfying requirement of low cost and high quality product, this loom can make clients get most benefit, which is the creditable pledge for clients in serious marketing competition.
E-mail: topbright@yeah.net
Mob/ Whatsapp: +86 15253270037
| Item | Specification | Optional | |
Reed space | Nominal | 170.190.210.230.250.260.280.300.310.320.340.360.390cm | |
| Useful reed width | Same as nominal width maximum reduction 60cm(190-250crn) Same as nominal width maximum reduction 80cm(280cm) | ||
| Working range | Short yam:100S/1 ~5.8S/1 | ||
| Weft seledion | 2-color mixing, 2-color at-will. 4colors. 6colors | ||
Drive | Rush start motor | ||
| Programmed and direet drive &stop mechanism by electromagnet brake | |||
| Direct drive motor (directly drive the loom, reduce the energy loss of belt drive, and reduce the weaving cost) | |||
Weft Insertion | Main and sub-noules combined system | Stretching nozzle | |
| Profile reed | |||
| Auxiliary main nozzle | Double swing main jet | ||
| Double fixed main spray | |||
| Shedding | Positive cam shedding: shaft number up to 10 | ||
| Dobby shedding: shaft number up to 16 | |||
| let-off | Electronic let-off(el-o)with kickback funcbon | ||
| Positive easing | |||
| Flange Dia | 800mm | 914 ,1000mm | |
| MTU:mechanical take-up | ETU electronic take-up | |
| Max take-up Dia | 600cm | ||
| Pick density | MTU:6.6 ~80.5 pickes/cm | ||
| (16.7 ~204.4pickes/inch) | |||
| Length count | board display,take the function of fixed measure stop | ||
| Temple | floor-mounted | ||
Beating | Crank type beating,multiple sley sword beating 4 links(Reed space 190 ~280cm) 6links(Reed space280 ~360cm) Intermediate rocking supporter | ||
| Measuring/storing | FDP Free drum pooling | ||
| Filling supply stand | Floor-mounted for 4 parckages(2colors),Floor-mounted for 8 parckages(4colors) | ||
| Selvedge | Planetary gear motion(lenoselvedge of middle cord yam) | Electronic edge | |
| Waste filling removal | Catch cord type | ||
| Cutter | Mechanical cutter | Electronic scissors | |
| Lubrication | Oil bath system for main drive parts,centralized lubrication(manual grease) | ||
Auto-stop motion | Weft yam | Reflective weft feeler | |
| Warp yam | Electric feeling system | ||
| other | Stop motion for selvage and catch cord yam | ||
| Stop cause indication | Message on board, 4-color lamp for indicating cause | ||
| Middle scissors | Mechanical type(Tisser double width) |
|
|
